GaN Laser Diodes
BluGlass offers GaN lasers to the industrial, defence, quantum, scientific, biotech and display markets.
Our full suite, end-to-end laser diode design, fabrication and packaging capability means we can provide custom solutions to meet your specific form factor, device architecture and package integration needs to help bring your next innovation to life.

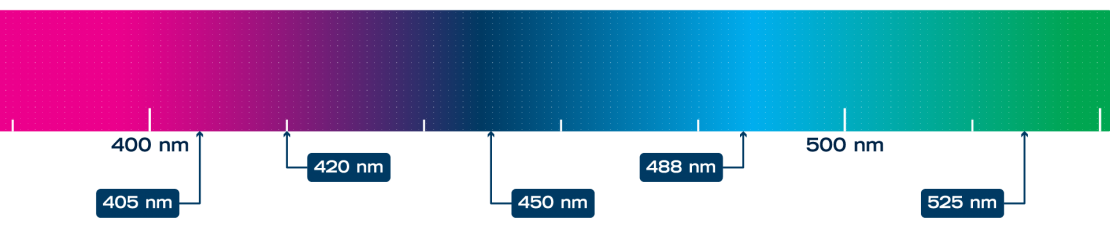

Wavelengths
BluGlass’ visible spectrum laser diode product range spans a spectrum of wavelengths from ultra-violet 397nm to blue 450nm devices. Our longer wavelength devices to green 525nm devices are progressing through our product pipeline. Ask us about custom wavelength development.
Applications
BluGlass’ customers are developing applications in the quantum, defense, industrial, biotech, scientific, and display segments. Ask us how our plug-and play or custom development can help you bring your next innovation to life.

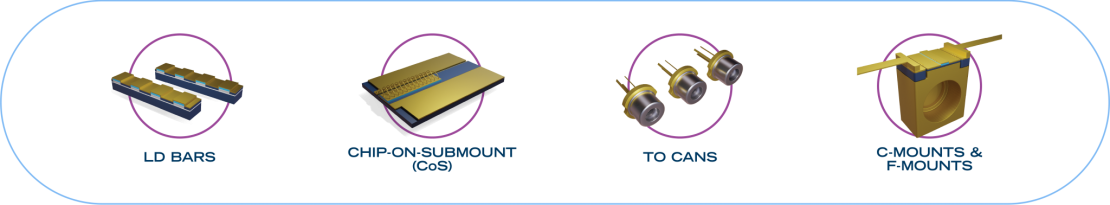

Flexible Form Factors
Whether you are looking for individual chips, bars, chip-on sub-mounts, or volume-manufactured multi-chip modules, our world-class team and state-of-the-art facilities in the US and Australia have the capability and expertise to help you deliver your next product.
Single Mode Laser Diodes
| Colour | Product | Data Sheet | Mode | Wavelength | Optical Output Power [mW] | Current [mA] | Voltage [V] |
| Ultra- Violet | BLV-397 200♦ |  |
SM | 392-400nm | 200 | 200 | 4.5 |
| BLV-405 250 | |
SM | 400-410nm | 250 | 200 | 4.5 | |
| Violet | BLV-420 250 | |
SM | 415-425nm | 250 | 230 | 5.4 |
| Blue | BLV-450 250 | |
SM | 445-455nm | 250 | 230 | 5.4 |
SM: Single Mode ♦: Prototype Product
Multi-Mode Laser Diodes
| Colour | Product | Data Sheet | Mode | Wavelength | Optical Output Power | Current [A] | Voltage [V] |
| Violet | BLV-405 1W | |
MM | 400-410nm | 1W | 1 | 4.5 |
| BLV-405 3W♦ | |
MM | 400-410nm | 3W | 2.8 | 4.5 | |
| BLV-420 1W | |
MM | 415-425nm | 1W | 1 | 4.5 | |
| BLV-420 3W♦ | |
MM | 415-425nm | 3W | 3 | 4.5 | |
| Navy | BLV-450 1W | |
MM | 445-455nm | 1W | 1 | 5.4 |
MM: Multi Mode ♦: Prototype Product
BluGlass Product Catalogue
BluGlass offers GaN lasers to the industrial, defense, scientific, biotech, and display markets.
BluGlass improves novel GaN DFB laser performance for quantum applications
BluGlass has made significant improvements to its GaN Distributed Feedback Laser (DFB) performance using RPCVD for longer-wavelength devices.
Brighter, higher-efficiency laser diode designs
Today, GaN laser diodes suffer from significant optical and resistive loss, leading to low conversion efficiencies in the 45% range compared to the 90% approach in GaN-based LEDs. Contact and series resistance can account for up to 50% of the power consumed in GaN-based laser diodes.

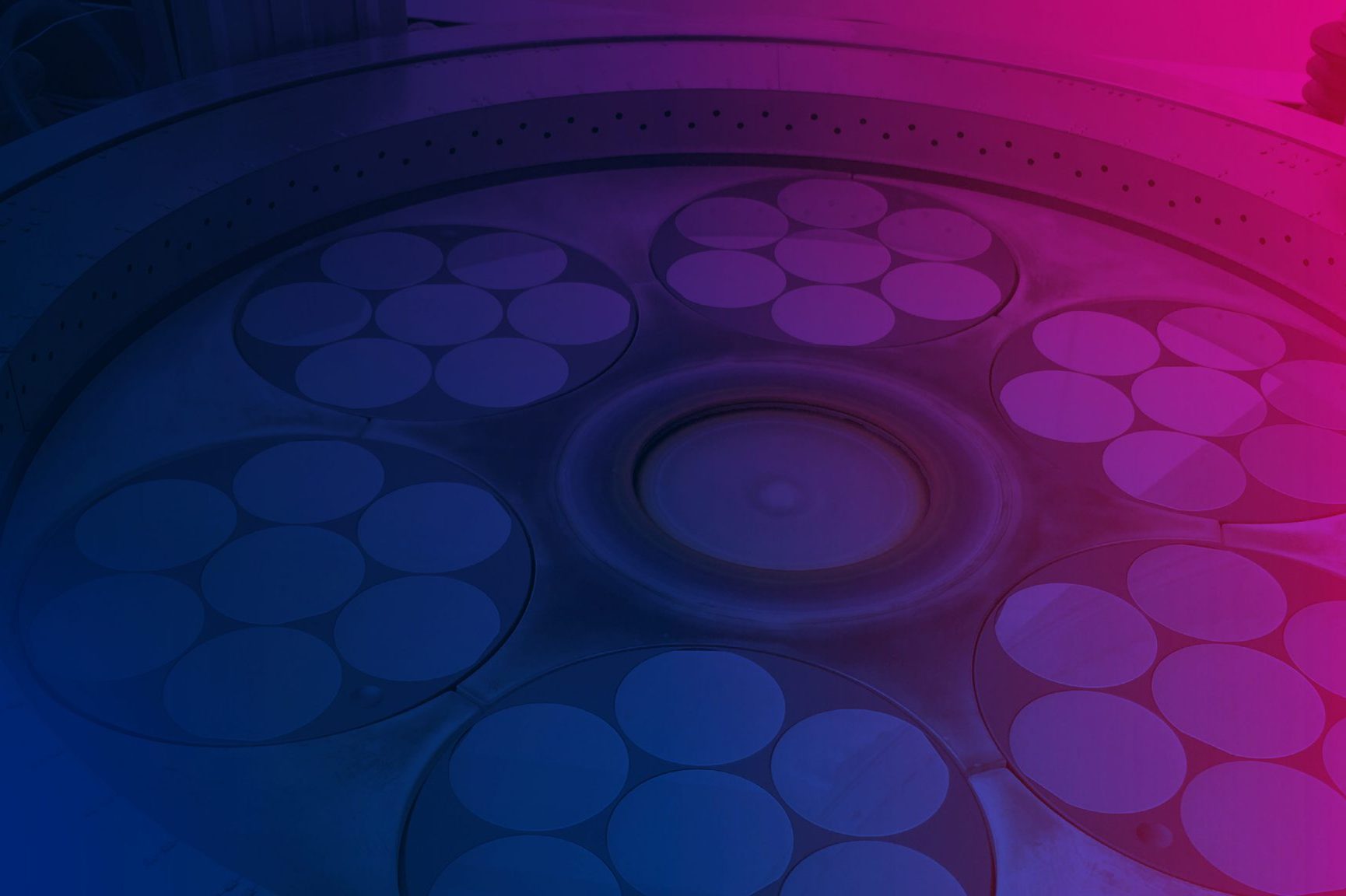

Our revolutionary growth technology, called remote plasma chemical vapor deposition (RPCVD), offers many unique benefits to our customers – including the novel, low resistivity, and higher efficiency laser diodes.
BluGlass’ novel laser diode designs replace the highly lossy materials in traditional laser diode designs by combining the best of traditional nitride growth techniques with our own unique low-temperature, low hydrogen nitride growth process – to enable novel and higher efficiency laser diodes. Could RPCVD improve your device performance and help drive your next laser product?
